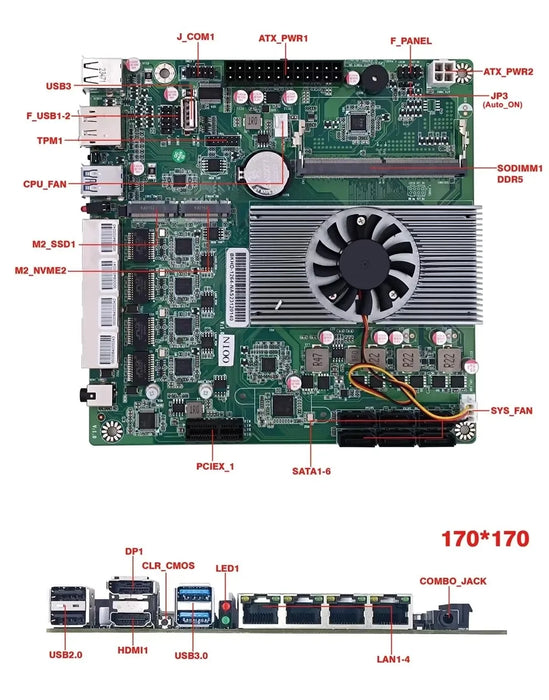

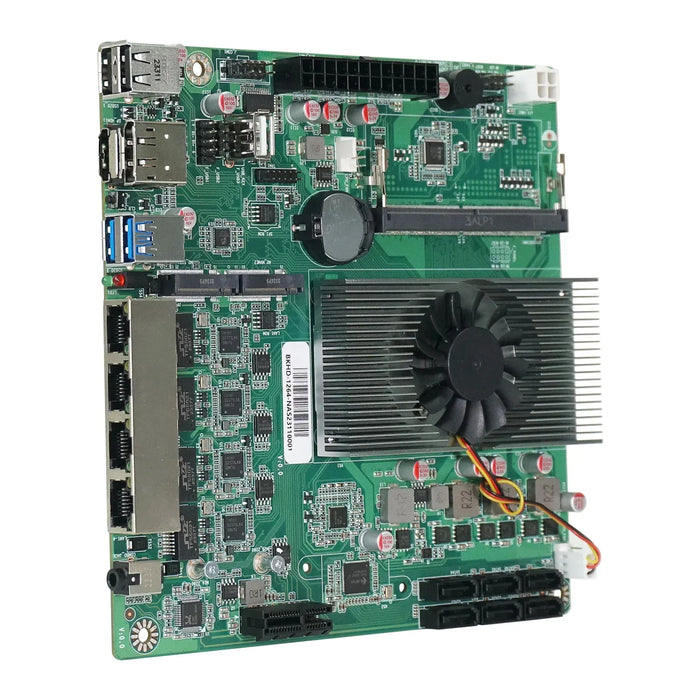

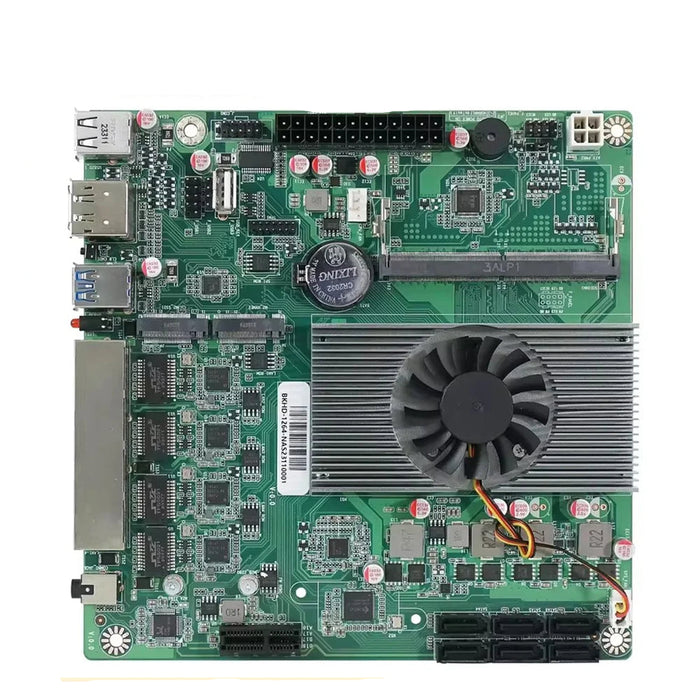

Compact NAS Motherboard with PCIe, NVMe, and SATA Support

Create a space-saving and power-efficient NAS or server system with this Mini ITX motherboard powered by the Intel N150 processor. Pre-installed with 16GB DDR5 memory and a 128GB NVMe SSD, it delivers responsive performance for everyday network storage, firewall setups, and home lab environments. With support for six SATA 3.0 drives, dual M.2 NVMe slots, and four 2.5G Ethernet ports, this board is built for reliable 24/7 operation with high-speed connectivity.

Key Features

• Intel N150 processor with 4 cores and turbo speed up to 3.6GHz

• 16GB DDR5 memory and 128GB NVMe SSD for efficient multitasking

• 6 SATA 3.0 ports and 2 M.2 NVMe slots for storage expansion

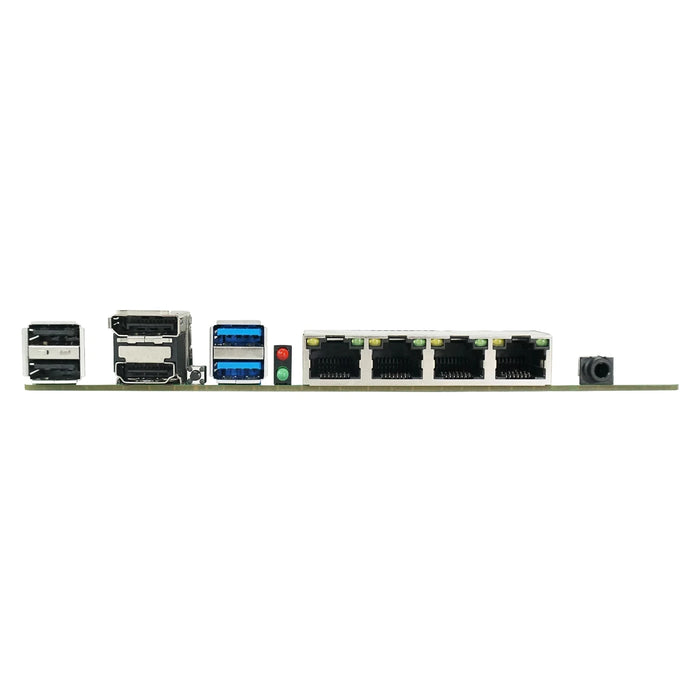

• 4 x 2.5G Ethernet ports for high-throughput networking and routing tasks

• Low-power design ideal for compact NAS and always-on server builds

Specifications

• Processor: Intel N150, 4 cores / 4 threads, up to 3.6GHz

• Cache: 6MB

• TDP: 6W

• Graphics: Intel UHD Graphics 24EUs

• Memory: 16GB DDR5

• Storage: 128GB NVMe SSD (pre-installed), 6 x SATA 3.0, 1 x extra NVMe slot

• Network: 4 x 2.5G Ethernet ports

• Expansion: 1 x PCIe x1 slot

• Form Factor: Mini ITX

Package Contents

• 1 x ITX NAS Motherboard

• 1 x Pre-installed 128GB NVMe SSD

• 1 x SATA Cable

• 1 x I/O Shield

• 1 x User Manual

Note
Must be connected to both a 24-pin and 4-pin ATX 12V power supply to operate. Memory and SSD are pre-installed; additional drives can be added separately as needed.
