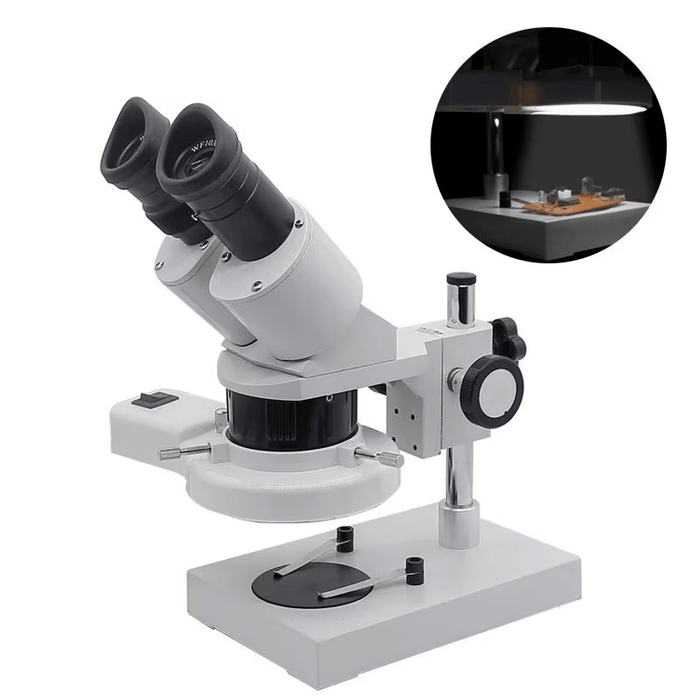

Stereo Microscope for PCB Inspection

Key Features

• Versatile Magnification: Offers magnification levels of 10X, 20X, 30X, and 40X for detailed observation of small objects, ideal for industrial and precision tasks.
• Wide Field Eyepiece: Includes WF10X eyepieces for sharp and clear images with a broad field of view.
• Adjustable Working Distance: Features working distances ranging from 56 mm to 81 mm, depending on the selected objective.
• Binocular Head: 45-degree inclined binocular head with adjustable diopter and interpupillary distance from 55 mm to 75 mm for comfortable viewing during long use.
• High-Definition Imaging: Provides sharp stereo erect images over a wide field of view, perfect for examining intricate details in PCB boards, soldered points, and microelectronic components.
• Sturdy Construction: Built with a rugged metal frame and stand for durability and long-term use.
• Ring Light Illumination: Comes with a fluorescence ring light for bright and even illumination, enhancing visibility during inspection and repair tasks.

Specifications

• Eyepiece: WF10X
• Objective Options: 1X/3X or 2X/4X
• Total Magnification: 10X/30X or 20X/40X
• Working Distance: 56 mm to 81 mm
• Interpupillary Distance: 55 mm to 75 mm
• Microscope Dimensions: 170 mm x 115 mm x 210 mm to 280 mm
• Net Weight: 1.69 kg
• Inclination: 45 degrees
• Stage Plate: 60 mm black and white reversible plate

Package Contents

• 1 Stereo Microscope with WF10X Eyepieces 10X 20X
• 1 Pair of Eye-cups
• 1 Pair of Clips
• 1 Dust Cover
• 1 Fluorescence Ring Light

Additional Notes

This high-definition stereo microscope is perfect for applications such as PCB inspection, soldering repair, and examining fine details in materials like metal, wood, and semiconductor components. Its ergonomic design and adjustable features ensure fatigue-free use, while the sturdy construction makes it a reliable tool for professionals and hobbyists. Please specify voltage and plug type when ordering.
