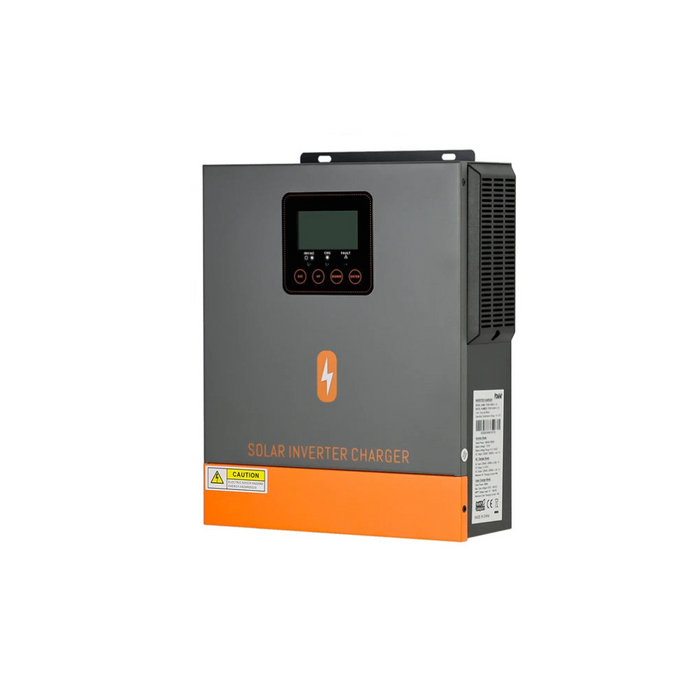

1.5KW Solar Hybrid Inverter 24V Pure Sine with MPPT

Power your home efficiently with this 1.5KW 24V off-grid solar hybrid inverter. Designed for use with lithium, LiFePO4, or lead-acid batteries, it combines the functionality of an inverter, solar charger, and battery charger into one compact unit. With built-in MPPT technology, it maximizes solar charging efficiency and provides reliable pure sine wave output for sensitive electronics. The intuitive LCD panel allows full configuration of voltage ranges, charging modes, and input priorities. Perfect for home, RVs, cabins, or backup power setups.

Key Features:

• 1.5KW pure sine wave output for stable power delivery

• Integrated 80A MPPT solar charge controller

• Supports 12V/24V battery systems, including lithium and lead-acid

• LCD display with customizable input/output settings

• Automatically restarts when AC power resumes

• Overload, short circuit, and temperature protection

• Smart battery charging for extended battery life

• Cold start function for power outages

• Compatible with generator or mains input

Specifications:

• Rated Output Power: 1500VA / 1500W

• Battery Voltage: 24VDC

• Output Voltage: 220–240VAC

• Output Frequency: 50Hz

• Waveform: Pure Sine Wave

• Efficiency: >94%

• Max PV Array Power: 1200W

• MPPT Voltage Range: 30–150VDC

• Max PV Input Voltage: 150VDC

• Max Solar Charging Current: 40A

• Max Combined Charging Current: 80A

• Transfer Time: 10ms (UPS) / 20ms (Appliances)

• Dimensions: 286 x 240 x 91 mm

• Weight: 3.5 kg

• Operating Temperature: -10°C to 50°C

• Humidity: 5%–95% (non-condensing)

• Certifications: CE

Package Contents:

• 1 x 1.5KW Solar Hybrid Inverter

• 1 x User Manual

• 1 x Accessory Kit (Cables/Mounting Screws)
