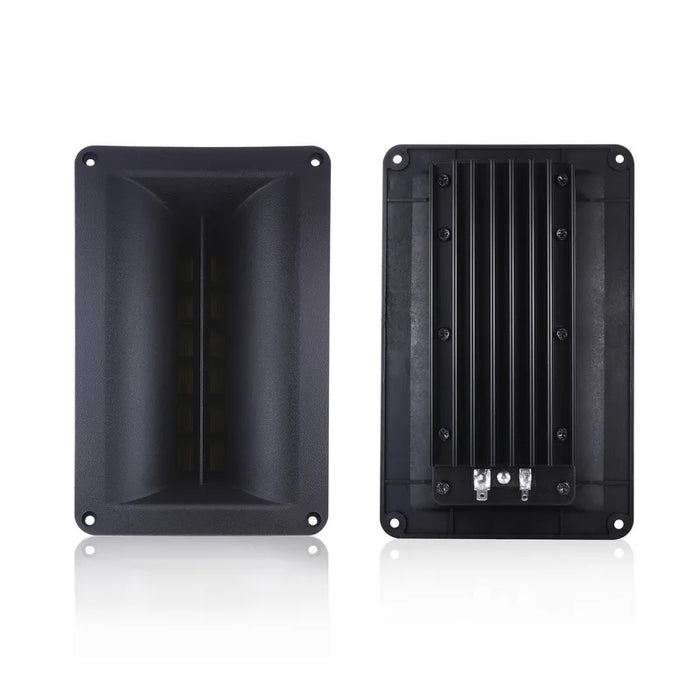

Planar Ribbon Horn Tweeter for DIY HiFi Speakers

Upgrade your sound system with this high-performance ribbon tweeter, designed for true HiFi enthusiasts and audio professionals. Ideal for DIY speaker builds, home theatres, or stage setups, this unit features a precision-crafted aluminum planar diaphragm and neodymium magnets for exceptional high-frequency clarity and wide dispersion. Whether you're fine-tuning a full-range system or replacing a damaged tweeter, this component delivers refined audio performance and lasting power, making it perfect for immersive music experiences and detailed soundstage design.

Key Features:

• High-sensitivity design with 105dB output for powerful sound

• Wide frequency range from 500Hz to 23kHz for smooth highs

• Neodymium magnet for efficient, distortion-free performance

• Horn-loaded structure with wide horizontal coverage and tight vertical dispersion

• Ideal for HiFi, DIY audio builds, and professional sound reinforcement

Specifications:

• Rated Impedance: 6Ω

• Sensitivity: 105dB

• Frequency Range: 500Hz – 23kHz

• RMS Power: 50W

• Max Power: 160W

• Diaphragm Material: KAPTON

• Magnet Type: Neodymium

• Conductive Line: Aluminum foil

• Crossover: Recommended ≥800Hz

• Tweeter Structure: Ribbon / Planar

• Terminal Size: 4.8×0.8mm (+); 2.8×0.8mm (–)

• Net Weight: 1.20kg

Package Contents:

• 1 x Ribbon Tweeter Unit

Note:
This tweeter is suitable for use in both DIY HiFi speaker projects and car audio systems. Compatible with passive or active crossover networks rated at or above 800Hz.
