WiFi Tuya 100A Three-Phase Smart Energy Meter

This three-phase smart energy meter provides real-time power monitoring and bi-directional metering for residential, commercial, and industrial applications. Designed for AC 3x230V/400V 50/60Hz systems, it supports remote monitoring via a mobile app, allowing users to track energy consumption from anywhere. The device features a split-core current transformer for easy installation and accurate measurement.

Key Features:

• WiFi Connectivity: Remote monitoring via a smart app.

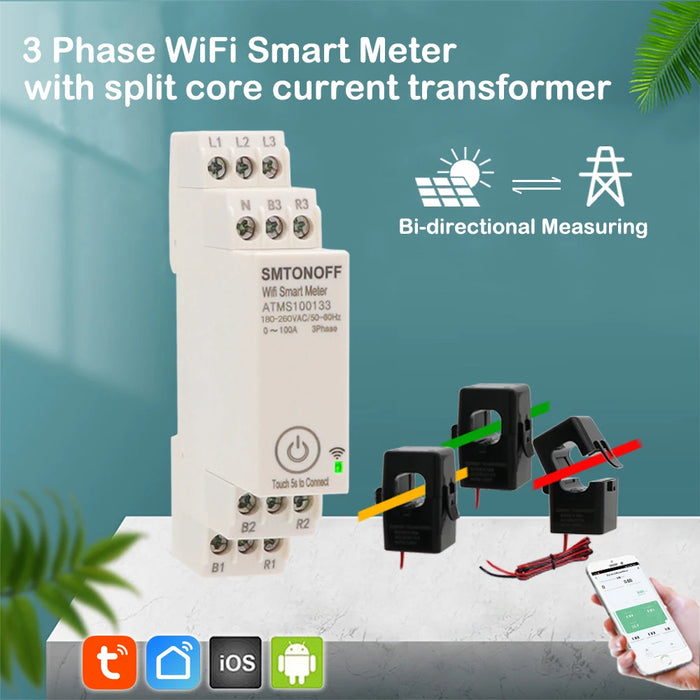

• Bi-Directional Metering: Measures both grid energy consumption and solar energy feedback.
• Real-Time Monitoring: Displays current, voltage, active power, reactive power, and power factor.
• High Accuracy: Split-core current transformer with 100A range and 0.5 accuracy.
• User Sharing: Allows device access for multiple users.

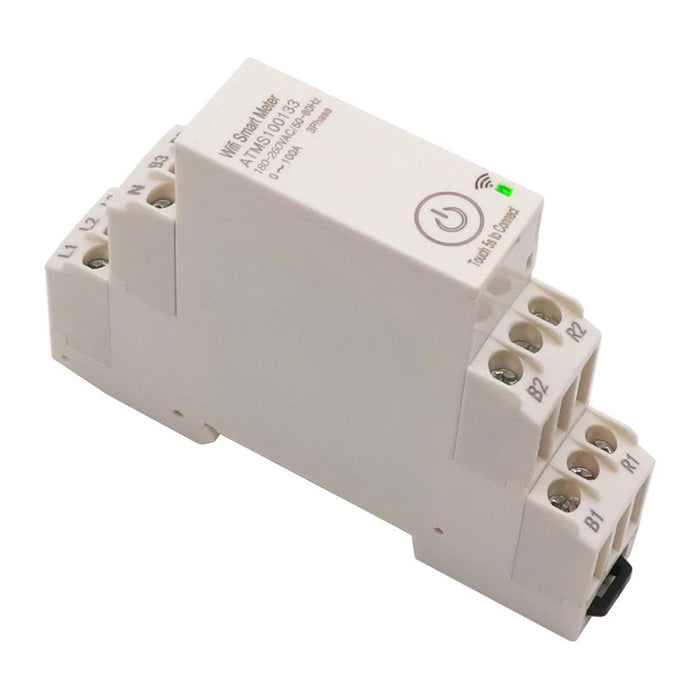

• DIN Rail Mounting: Easy installation on a 35mm rail.

Specifications:

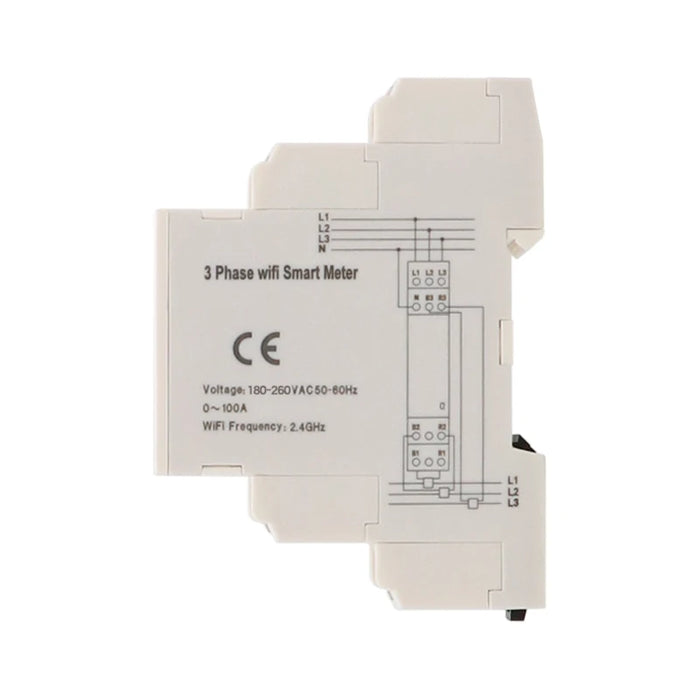

• Poles: Three-phase, four-wire, 4P
• Rated Voltage: AC 3x230V/400V (Operating range: 180–260V)
• Rated Current: Up to 100A
• Frequency: 50/60Hz
• Self-Consumption: 2.2VA/0.7W
• Current Transformer Ratio: 1000/1
• Energy Measurements: Total active energy, forward and reverse energy, active and reactive power

Package Contents:

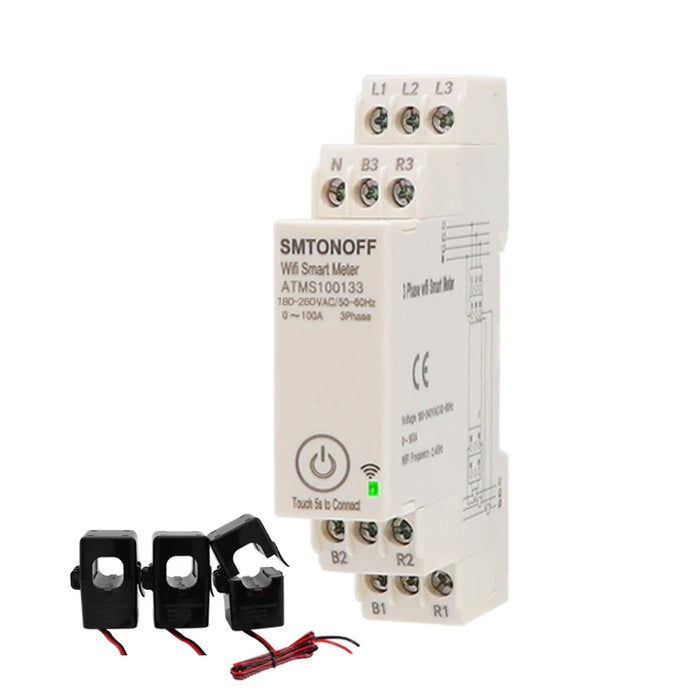

• 1 × Smart Energy Power Monitor
• 1 × External Current Transformer
• 1 × User Manual

Ideal for monitoring and managing power consumption efficiently, this smart meter ensures accurate energy tracking with remote accessibility.
