Versatile mounting options with T-shaped and U-shaped clamps for various laser engraver models

5MP Wide-Angle Camera for Laser Engravers

by Unbranded
$0.00 - $0.00
$0.00
$171.99
$171.99 - $171.99
$171.99
Availability:
109 in stock, ready to be shipped



Enhance the precision and efficiency of your laser engraving projects with this 5MP 120-degree wide-angle camera. Designed for seamless integration with Lightburn software, this industrial-grade camera offers accurate positioning, image tracing, and batch engraving capabilities. The high-definition sensor captures clear details, ensuring precise engraving alignment. With a wide viewing angle and HD video recording, you can monitor the engraving process and share time-lapse videos effortlessly. Compatible with multiple laser engraver models, this camera is an essential tool for professionals and hobbyists alike.

Key Features:

  • High-Definition 5MP Camera – Captures clear, detailed images for precise engraving positioning.

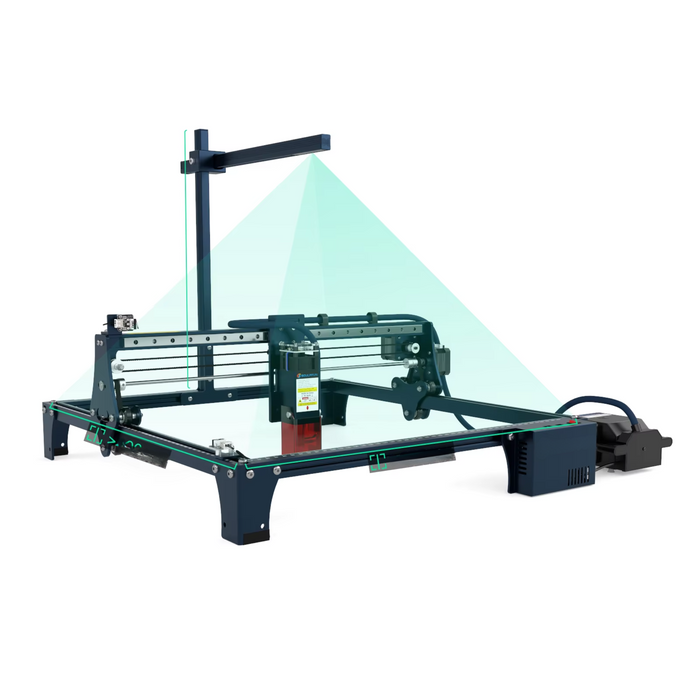

  • 120 Degree Wide-Angle Lens – Expands the field of view, covering a 400 x 400 mm work area.

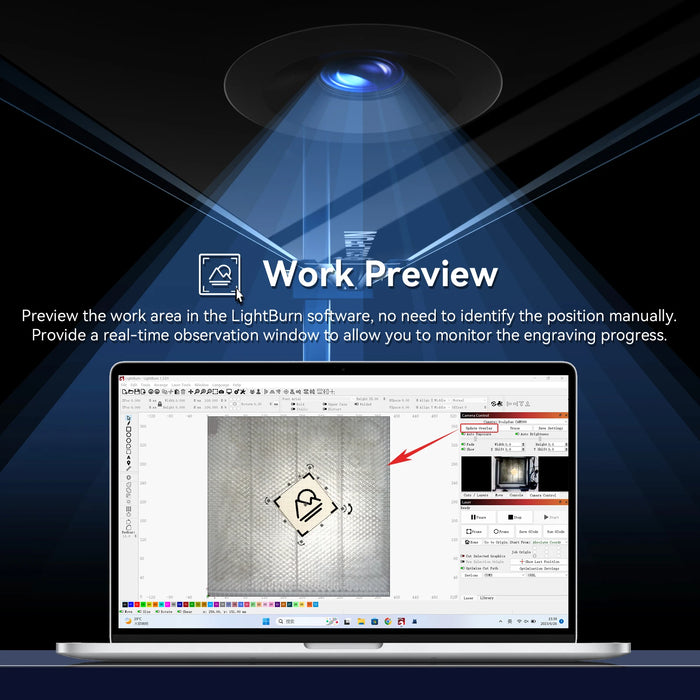

  • Accurate Positioning – Works with Lightburn software to identify engraving object placement with a deviation of less than 1 mm.
  • Pattern Control & Image Tracing – Move patterns within Lightburn and convert object designs into engraving vector files.
  • Batch Engraving Efficiency – Automatically detects and engraves multiple objects in one session, reducing manual setup time.
  • HD Video Recording – Enables time-lapse recording of engraving and cutting processes for monitoring and sharing.
  • Versatile Mounting Options – Includes T-shaped and U-shaped clamps for compatibility with various laser engraver models.

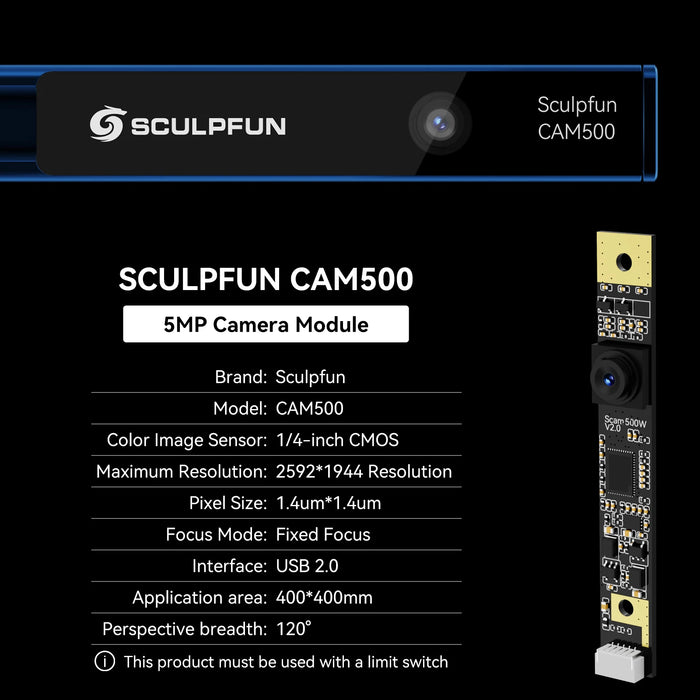

Specifications:

  • Recommended Camera Height: 325 mm
  • Optimal Working Area: 400 x 400 mm
  • Mount Material: Aluminium
  • Compatible Systems: Windows 7/10/11, Mac
  • Camera Sensor: 5MP 1/4-inch CMOS
  • Resolution: 2592 x 1944
  • Pixel Size: 1.4 µm
  • Focal Length: 1.79 mm (Fixed Focus)
  • Viewing Angle: 120 Degrees
  • Aperture: F2.4
  • USB Interface: USB 2.0

Package Contents:

  • 1 x Camera Horizontal Rod Assembly
  • 1 x Camera Vertical Rod Assembly
  • 1 x T-Shaped Clamp Assembly
  • 1 x U-Shaped Clamp Assembly
  • 1 x Camera Slider (Rod Connector)
  • 1 x Screw Bag
  • 4 x Basswood Plywood Sheets
  • 3 x A5 Size Image Calibration Papers
  • 1 x User Manual
  • 1 x Soft Ruler

Package Weight: 0.8 kg
Package Size: 46.2 x 18 x 5.5 cm

Note: Ensure the camera is mounted at 325 mm height for optimal precision. Position objects centrally within the 400 x 400 mm work area for the best results.
