Low Latency FPV System with 1S Camera and HD Output

Unlock immersive, low-latency aerial visuals with this 1080p FPV VRX system paired with the Avatar 1S Kit—built for high-clarity performance and seamless drone integration. Offering up to 4km digital video transmission, ultra-fast 22ms latency, and HDMI output support, this compact receiver is ideal for FPV pilots seeking professional-grade responsiveness and image quality. The Avatar 1S Kit delivers lightweight power with advanced low-light capability and full OSD support, making this combo a go-to solution for freestyle, cinematic, or racing drone applications.

Key Features:

• 1080p/60FPS Resolution: Smooth HD video via H.265 encoding

• Long-Range Transmission: Up to 4km with dual antenna design

• Ultra-Low Latency: 22ms average delay ensures real-time feedback

• HDMI Output Supported: Stream or monitor footage without compression

• Canvas Mode Compatibility: Betaflight, INAV, and KISS OSD support

• Compact and Lightweight: 83g VRX for portability and ease of use

• Drone-Ready 1S Kit: Ideal for lightweight drones with tight mounting spaces

Specifications:

VRX Module

• Resolution Output: 1080p60fps, 720p100fps, 720p60fps

• Communication Frequency: 5.725–5.850GHz

• Input Voltage: 7–21V (2S–5S)

• Interface: HDMI, microSD slot, DC5.5×2.1mm

• SD Card Support: Up to 256GB

• System: Avatar HD

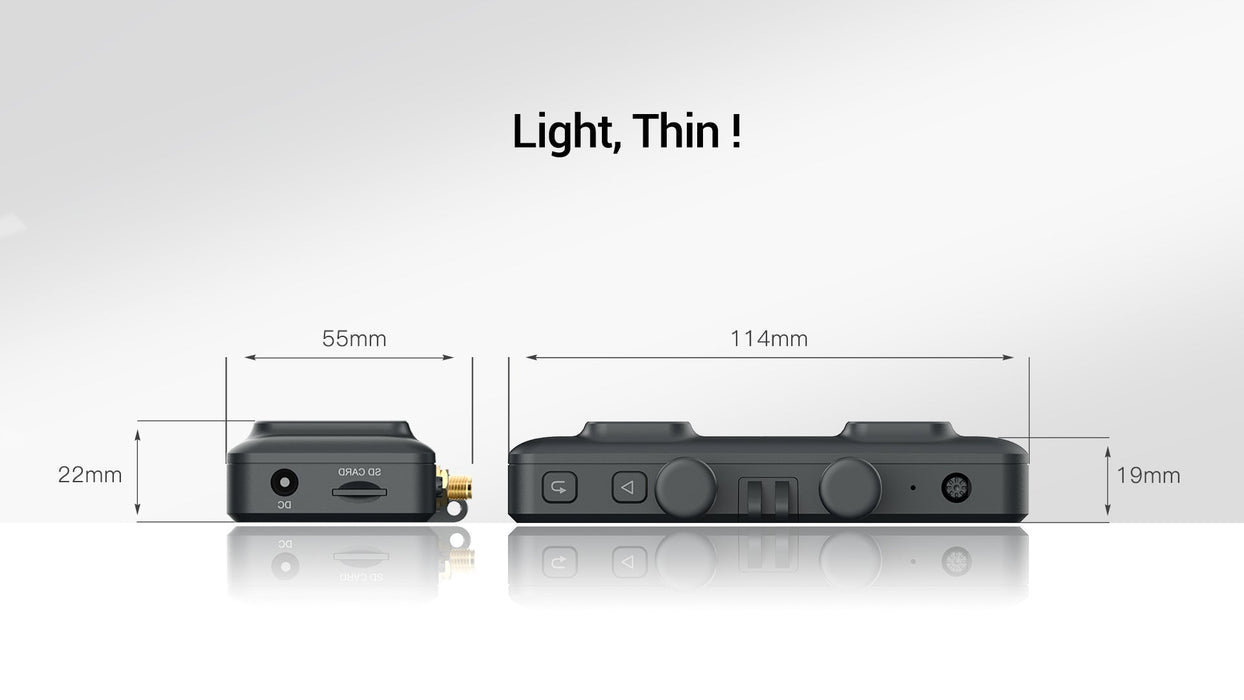

• Dimensions: 114×55×22mm

• Weight: 83g

1S Camera Kit

• Image Sensor: 1/2.7"

• Resolutions: 1080p/60fps, 720p/120fps, 720p/60fps

• Field of View: 170°

• Min Illumination: 0.001Lux

• Lens: 2.1mm, F2.0

• Weight: 3.5g

• Dimensions: 14×14×17mm

Antenna (Red Bird)

• Polarization: LHCP

• Bandwidth: 5.6–6.0GHz

• Gain: 1.9dBi

• Connector: RP-SMA

• Weight: 4.2g

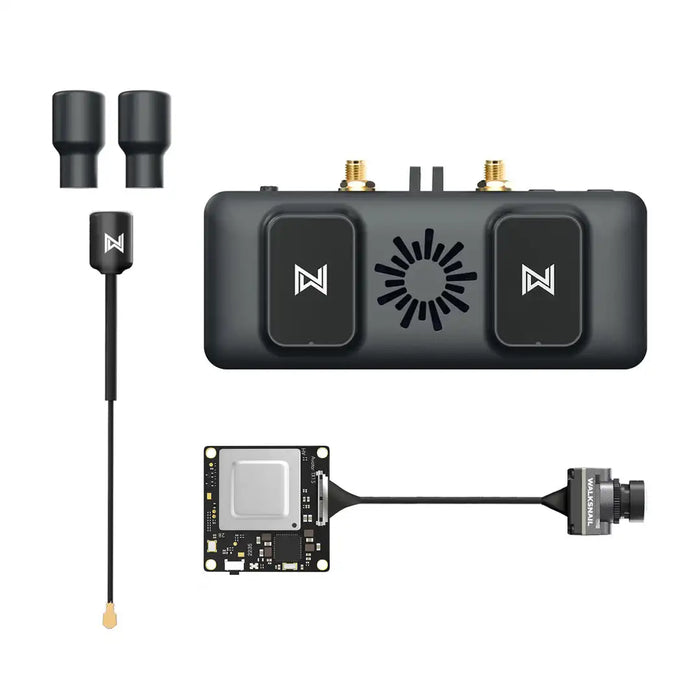

Package Contents:

• 1 × Avatar FPV VRX

• 2 × Red Bird Antennas

• 1 × HDMI Cable

• 1 × 2-in-1 DC Power Cable

• 1 × Avatar 1S Kit

• 1 × 4 Pin USB Cable

• 1 × 6 Pin Power Cable

• 2 × M2×3/4mm Screws

• 4 × M2×16mm Screws

• 4 × M2 Screw Nuts

• 5 × Gaskets (2.1×3.4×1mm)

Note:
This variant includes the Avatar 1S Kit—lightweight and optimized for 1S-powered drones and micro builds.
