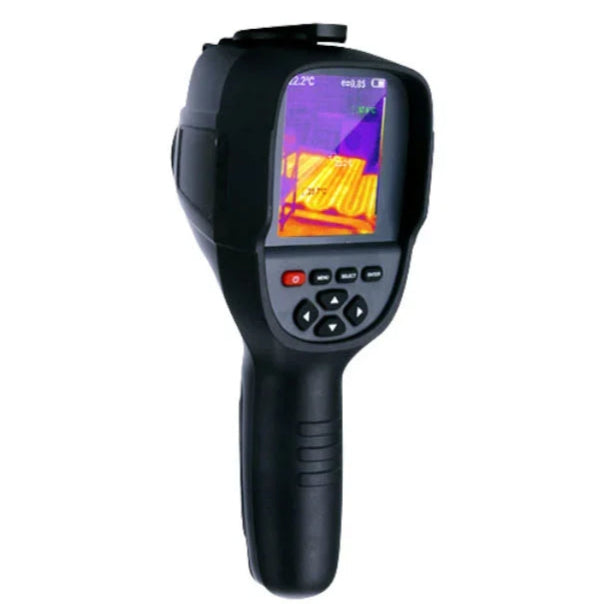

Handheld Thermal Imaging Camera 256x192

The 256x192 Handheld Thermal Imaging Camera is a versatile tool designed for detecting temperature anomalies in various applications, including water pipe leak detection, electrical testing, car engine inspections, and air conditioner repairs. This thermal imager combines infrared and visible light imaging to quickly identify problem areas with precision.

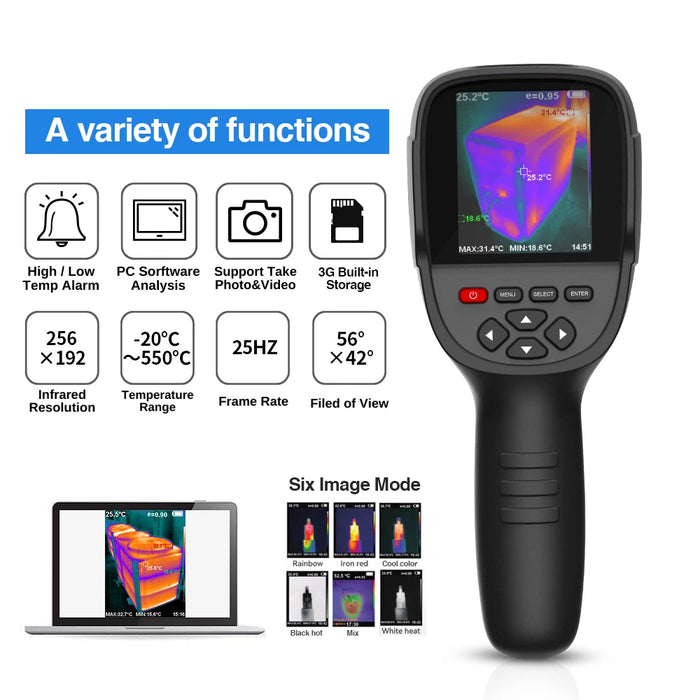

Key Features

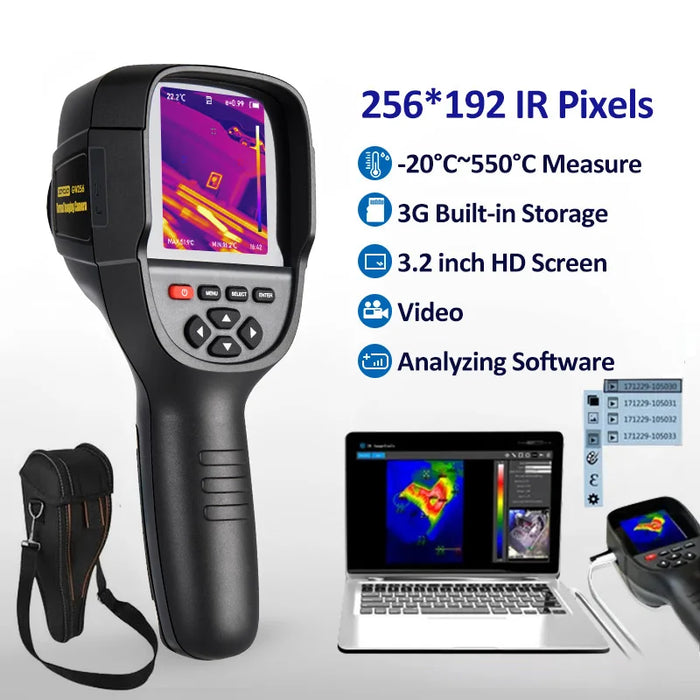

• High-Resolution Imaging: Infrared resolution of 256x192 and visible light resolution of 640x480 for clear, detailed visuals.
• Wide Temperature Range: Detects temperatures from -20°C to 550°C with an accuracy of ±2°C or ±2%.
• 3.2-Inch TFT Display: Full-angle 240x320 display for easy viewing of thermal and visible images.
• Adjustable Emissivity: Emissivity settings from 0.01 to 1 for accurate readings on various surfaces.
• Color Palettes: Choose from Rainbow, Iron Red, Cool Color, White Hot, and Black Hot to suit your needs.
• Thermal Image Blending: Combines thermal and visible light images to identify issues more effectively.
• Fast Frame Rate: 25Hz frame rate ensures smooth and responsive thermal imaging.
• Compact Design: Portable and ergonomic, measuring 90x105x223mm for convenient handling.
• Long Battery Life: Operates for 2-3 hours on a single charge, ideal for extended tasks.

Specifications

• Infrared Resolution: 256x192
• Visible Light Resolution: 640x480
• Wavelength Range: 8-14μm
• NETD: ≤50mK at 25°C (F/1.1)
• IFOV: 3.75mrad
• Lens Focal Length: 3.2mm
• Dimensions: 90x105x223mm

Package Contents
1 x Handheld Thermal Imaging Camera
1 x USB Charging Cable
1 x User Manual
1 x Protective Case

This thermal imaging camera is a reliable tool for professionals and DIY enthusiasts, offering precision, versatility, and ease of use for a wide range of diagnostic applications.
